Hamish Burke | 2025-06-30

TLS/SSL Certificates

When a client wants to access a server, the server will present their digital certificate to prove it authentic and the desired destination.

Contains

• Users name
• Company or department
• IP address or serial num of device
• Copy of public key from a certificate holder
• Duration of time the certificates valid for
• Domain certificate is authorised to represent

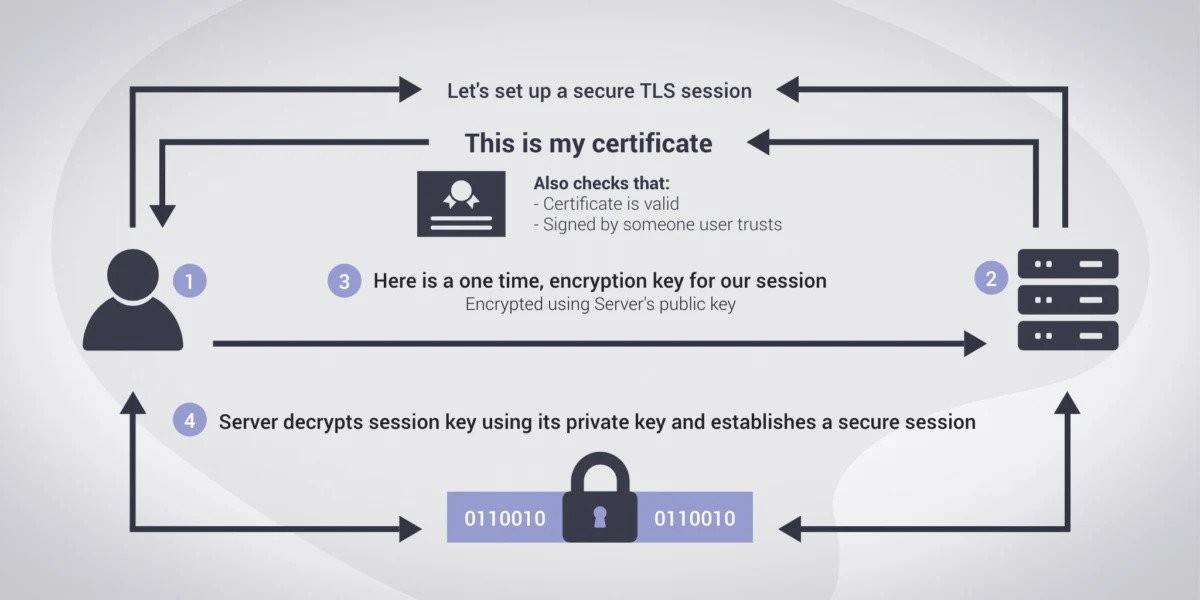

Handshake process

1. ClientHello: Client initiates connections: Gives CipherSuite and other details
2. ServerHello: Selects encryption method, and sends TLS certificate to client
3. Key Exchange: Client encrypts PMS with servers public key
4. Both client and server use the PMS to generate a session key, which is used for symmetrically encrypting/decrypting data during the session

Creating a TLS Certificate

Using OpenSSL

Making a selfsigned certificate to as CA

• openssl req -x509 -newkey rsa:4096 -days 365 -keyout ca-key.pem -out ca-cert.pem
  • -x509 outputs a self-signed certificate instead of a certificate request.
    • x509 is a standard format for a public key certificate
  • Can also provide details in the cmd, so it doesn't need to be added interactively
    • openssl req -x509 -newkey rsa:4096 -days 365 -keyout ca-key.pem -out ca-cert.pem -subj "/C=FR/ST=Occitanie/L=Toulouse/O=Tech School/OU=Education/CN=*.techschool.guru/emailAddress=techschool.guru@gmail.como"
    • /C=NZ is country
    • /ST=Bay of Plenty is state
    • /O=School is organisation
    • /OU=Eduaction is orignation unit
    • /CN=*.techschool.guru is for common or domain name
    • /emailAddress=emaail@gmail.com
  • can add -nodes to make it not encrypt private key (fully headless)
• openssl x509 -in ca-cert.pem -noout -text
  • Views the certificate in text format (in the x509 format)
  • noout makes it not also output the original base64 as well
  • text makes it readable

Make servers privates key and CSR (certificate signing request)

• openssl req -newkey rsa:4096 -keyout server-key.pem -out server-req.pem -subj "/C=NZ/ST=Wellington/L=Wellington/O=PC Book/OU=Computer/CN=*.pcbook.com/emailAddress=pcbook@gmail.com"
• If want to use existing private key
  • openssl req -key server.key -out server-req.pem

Sign the server certificate request

• `openssl x509 -req -in server-req.pem -days 60 -CA ca-cert.pem -CAkey ca-key.pem -CAcreateserial -out server-cert.pem -extfile server-ext.cnf
  • -req means we are going to pass it a CSR
  • CAkey is the private key of the CA (so normally we couldn't run this, only can cus this is self signed)
  • CAcreateserial: associates a unique serial number to this certificate (gets added to certificate, and creates a ca-cert.srl)
  • By default, it is valid for 30 days. Can add -days 60 to change it
  • -extfile server-ext.cnf can be added, to specify alternative names the certificate should sign
  • ext file can contain different emails, ip's and urls you want signed (format here)

Verify a certificate

• Needs certificate for CA and server
• openssl verify -CAfile ca-cert.pem server-cert.pem

Using ACME.sh

https://github.com/acmesh-official/acme.sh

• Use ACME Protocol

• Works on linux

• Works on windows (cygwin with curl, openssl and crontab included)

When installing, it adds acme.sh to path, then adds a crontab to run acme.sh everyday

cat /var/spool/cron/burkehami
28 9 * * * "/home/burkehami/.acme.sh"/acme.sh --cron --home "/home/burkehami/.acme.sh" > /dev/null

On windows can created a scheduled task in Task Scheduler:

schtasks /create /tn "acme-renew" /tr "\"C:\Program Files\Git\bin\bash.exe\" -c '~/.acme.sh/acme.sh --cron'" /sc daily /st 09:00

ACME.sh options

 --csr <file> Specifies the input csr.

 --notify-level <0|1|2|3> Set the notification level:  Default value is 2.
   0: disabled, no notification will be sent.
   1: send notifications only when there is an error.
   2: send notifications when a cert is successfully renewed, or there is an
   error.

--openssl-bin <file>  Specifies a custom openssl bin location.

-se, --stop-renew-on-error
Only valid for '--renew-all' command. Stop if one cert has error in renewal.

--days <ndays>
Specifies the days to renew the cert when using '--issue' command. The default value is 60 days.

--reloadcmd <command>
Command to execute after issue/renew to reload the server.

--register-account       Register account key. (if wanting to use smth like digicert with this)

--force (will force rotation of keys)

--install-cert -d <domain> \
	--key-file /etc/ssl/private/domain.priv.key \
	--fullchain-file /etc/ssl/certs/domain.cert \ (this is all public certs up to root)
	--reloadcmd "systemctl reload nginx"
This will save all specifies paths, and will rerun this every time certs are renewed (even with crontab). Saves paths to ~/.acme.sh/domain/domain.conf

• how do you make acme.sh see your certs?
  • All cert are created in ~/.acme.sh
  • Where do certs normally get saved/installed on a regular server?
